Hot Runner System Components

Expertly Manufactured Custom Hot Runner System Components to meet your deadlines

Upload your 2D/3D model
to get instant quotes.
STEP | STP | SLDPRT | DXF| STL | IPT | 3DXML | PRT | SAT files

Customized Hot Runner Components for Plastic Injection Molding

For mold makers, hot runner systems must be easy to repair and maintain, with swift identification of necessary replacement parts. We manufacture hot runner replacement components, including nozzle tips, nozzle tip insulators, valve pins/ejector pins, piston seals, nozzle housinghh, valve bushings, heating elements, and thermo-couples, ensuring efficient maintenance and repair.

Your Partner for Precision Hot Runner System Components

We are a global supplier of customized replacement hot runner system components fvor the plastic injection molding industry. We take pride in our ability to deliver customized components that meet the specific needs of our clients.

Hot-Runner-System-Components-02-min

Progress and Flow of Work for Custom Hot Runner Components

At JC Machining, we take great care to ensure the accuracy and precision of our custom hot runner components from the very beginning of the process.

During the initial stages of planning and development, we pay close attention to all details, size, dimensions, and tolerances and ensure that 3D data is 100% accurate to avoid any potential issues during production.

We use 3D CAD data, technical drawings, and CNC machines and thoroughly check programming and machining before production begins. Our machinists pay high attention to detail to ensure that our components meet the exact specifications of our clients and provide the best performance for our customers.

Hot-Runner-System-Components-03-min
Our Process

Get High Quality Parts Manufactured on-demand

Upload

Send drawings in 2D or 3D files with Dimensions & Specs

Select

Select the manufacturing Qty, process, materials, finishes, & certifications you require.

Receive Quote

Our engineers will thouroughly analyse your design, and you will receive our manufacturing quote.

Production

Once your order is confirmed we will start production and keep you informed with regular status updates.

Frequently Asked Questions
  • Parts machined will follow ISO 2768-m (medium) or ISO 2768-f (fine).
  • We guarantee on following ISO 2768 standards for all CNC machined parts and other components  that do not include specific tolerance requirements.
  • For even tighter tolerances on shafts, we offer custom quotes as a free service.

In our current facilities, we have:

  • 6 CNC milling machines
  • 12 CNC lathe machines
  • 15 High-variant grinding machines
  • 46 Grinding machines
  • 11 Types of Wire-EDM Sandblaster
  • Knurling Machine

Other advanced manufacturing equipment.

There is no MOQ. We offer solutions such as one-off rapid prototypes, custom low-volume CNC machining, and mass production with short lead times.

Even though our in-house machines can machine larger parts, we recommend these sizes:

  • Maximum Turning Diameter: 250 mm
  • Maximum Turning Length: 300 mm
  • Maximum Grinding Diameter: 250 mm
  • Maximum Grinding Length: 400 mm
  • Maximum EDM Length Hole: 50mm
  • Maximum EDM Length: 250mm
  • Maximum Wire-EDM Thru hole Height: 100mm
  • Maximum Wire-EDM Length & Width Capacity: 300*500mm

Lead times will vary depending on your project complexity and our capacity:

For larger projects, in general, you can expect shipment 2-3 weeks after sending in your confirmed order.

With rapid one-off CNC prototypes, global delivery can be within 10 days.

Our sales office operates from 8:00 am to 6:00 pm local time (GMT+8)

Our factory operates 24/7 Monday to Sunday.

As Machined, Polishing, Sand Blasted, Black Oxide, TiN, TiCN, TiALN, AlCrN, DLC and Chrome Plated.

We offer free ground shipping limited to customers in Taiwan and China. For other locations, our sales and fulfillment team will work with the carriers of your choice.

We understand that your 3D data and designs are invaluable to your business. Therefore, we take the protection of your intellectual property rights (IPR) very seriously. We encrypt all files that are transferred using SSL, ensuring that they can’t be intercepted while being uploaded to our servers.All the information and any files which you upload onto our platform are stored securely, and only ever shared within our organization with those employees who need access to it in order to manufacture your parts.

We ensure confidentiality across the entirety of your order; original drawings are not shared with 3rd party suppliers as all our production is done in-house.If you would like some additional reassurance, we can sign a Non-Disclosure Agreement.

JC Machining has a CNC manufacturing team of professional engineers and machinists to reduce manufacturing redundancy, optimize CNC programming, shorten machining time, improve surface finish, and deliver the best quality machined parts.We take each project personally and carefully examine each drawing, we can then enhance the 2D/3D designs by adding clarity and detailed information and further analyze your design to accommodate any special fixturing and machining strategies used to produce your parts at a very reasonable cost.

Our manufacturing team follows strict quality control standards, delivering 100% accuracy at strict tolerances. You can also call or email us at any time, and we’ll help with ordering parts, design feedback, material recommendations, and answer any questions.

Choose The Right CNC Machining Services Provider

Hot sprue tip/ nuts
Material Used:Stainless steel, SUS420
Machining Process:CNC Turning, surface grinding,
Finish:Ra 0.5-0.8, as machined
Tolerance: +/-0.01

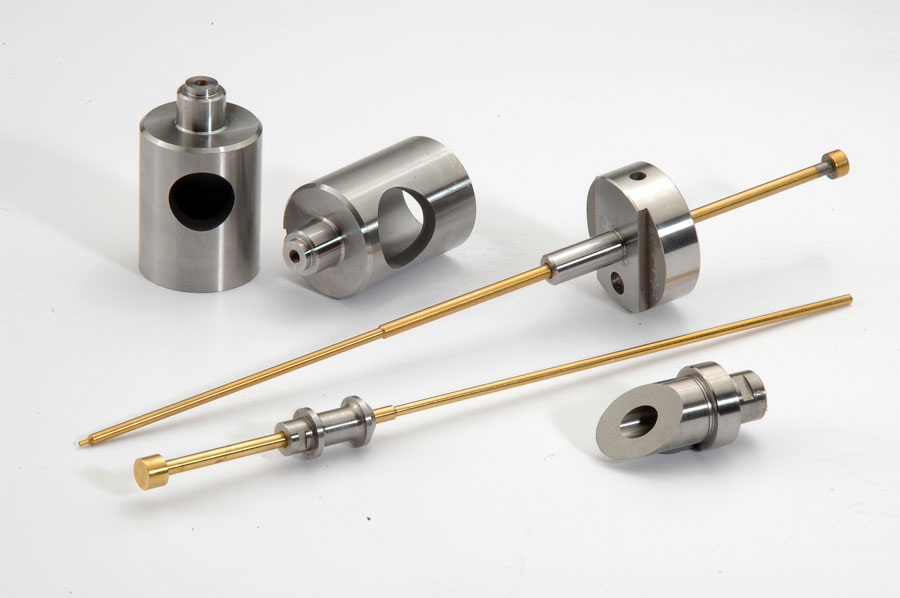

Hot Runner components; Valve Pin, Nozzle Body, Piston, Nozzle Cap
Material Used:Stainless steel, SUS420, SKD61, Copper, Aluminum,
Machining Process:CNC Turning, Center Grinding, EDM, Surface Grinding,
Finish:Ra 0.5-0.8, As machined, TiN coating,
Tolerance: +/-0.01
Hot runner parts (Piston)
Material Used:Stainless steel, SUS420
Machining Process:CNC Turning, Cylindrical grinding, surface grinding
Finish:Ra 0.5-0.8, Sandblasting, As Machined
Tolerance: +/-0.01
Hot runner parts (Piston)
Material Used:Stainless steel, SUS420
Machining Process:CNC Turning, Cylindrical grinding, surface grinding
Finish:ARa 0.5-0.8, as machined
Tolerance: +/-0.01
Hot Runner components; Valve Pin, Nozzle Body,
Material Used:Stainless steel, SUS420, SKD61, Copper, Aluminum,
Machining Process:CNC Turning, Center Grinding, EDM, Surface Grinding,
Finish:Ra 0.5-0.8, As machined, TiN coating,
Tolerance: +/-0.01
Valve Tip
Material Used:SKD61
Machining Process:CNC turning, surface grinding
Finish:As machined, Nitriding,
Tolerance: +/-0.01
Nozzle Tips
Material Used:Stainless Steel, SUS420
Machining Process:CNC Turning, cylindrical grinding, surface grinding
Finish:Sandblasting, As machined
Tolerance: +/-0.01
Nozzle
Material Used:SKD11
Machining Process:CNC turning, Cylindrical grinding
Finish:As machined
Tolerance: +/-0.02
Hot runner nozzle 100 mm
Material Used:FDAC+SKD61+beryllium copper
Machining Process:CNC turning+central grinding
Finish:As machined
Tolerance: +/-0.02
Hot runner nozzle 250 mm
Material Used:FDAC+SKD61+beryllium copper
Machining Process:CNC turning+central grinding
Finish:As machined
Tolerance: +/-0.025
Heater
Material Used:Copper
Machining Process:CNC Turning, cylindrical grinding, surface grinding
Finish:Sandblasting, As machined
Tolerance: +/-0.01
Heater
Material Used:Copper
Machining Process:CNC Turning, cylindrical grinding, surface grinding
Finish:Sandblasting, As machined
Tolerance: +/-0.01
Heater
Material Used:Copper
Machining Process:CNC Turning, cylindrical grinding, surface grinding
Finish:Sandblasting, As machined
Tolerance: +/-0.01
